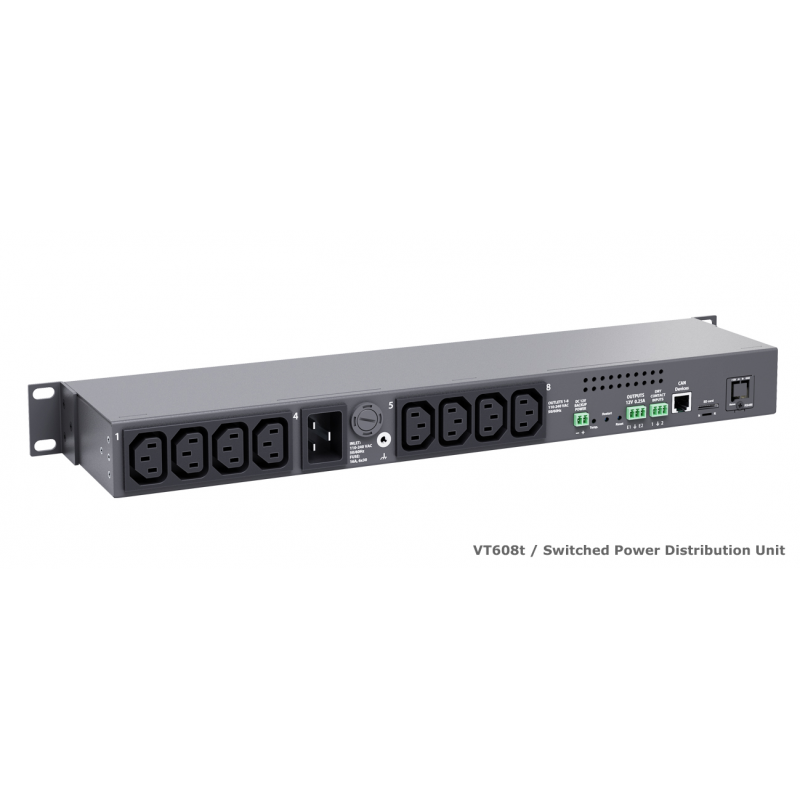

Device is used for load management and provides the ability to switch on/off or reboot up to 4 outlets.
It has a built-in temperature sensor, allows connecting 2 additional sensors, 2 dry contacts, two 12V devices (for example, alarm beacons), GSM modem and USB-сam.
There are built-in servers and agents e.g. HTTP, HTTPS, SNMP v1, 2c, 3, SMTP, Radius, Syslog, FTP, DHCP, Wachdog.
DATA TABLE
| Characteristic |
Data |
| Dimensions | 1U Rack mount, 440 x 44.45 (1U) x 79 mm |
Weight | 1.5 kg |
Network Interface | CAN open, 1-Wire, Ethernet 10/100 Mbit/s |
Inputs | 2 inlets C14 (240V, 10A), 2 analog sensors, HS USB, CAN bus, 2 dry contacts (3P, pitch 3,5mm, type IN) |
Outputs | 4 outlets C13, Two 12V 0,25A outputs (pitch 3,81mm, 3P), SMA GSM |
Mounting | Wall turnable mount (with extension), 19" rack mountable |
Extension protocols | CAN |
Expansions (ordered separately) | VT700 / GSM modem |
Power | 10 watt |
Status Indicators | 4 orange LEDs for outlet status, Error LED, LED indication for CAN bus connection, LED indication for Power / Network connectivity, Two relay status LEDs |
Components | Manufactured in E.U. |
Max. distance | 225 m |
HS Code | 8471 50 000 |
Processor | ARM926-300 MHz / 64 MB / Linux-2.6.38 |
Package includes | Cable EU Schuko C13 0.5mm2 230V 10A, Self-adhesive rubber foot 4 pcs, Warranty card, Short description and connection guide, Patch cable RJ-45 1m, Terminal plug 3 pins 3.5mm 1pcs, Terminal plug 2 pins 3.81mm 1pc, 19" mounting brackets 2pcs, Screws 6pcs M3 8mm |
Built-in sensors | Temperature sensor (1%) |
Device management | manually via SMS, SNMP, Web Browser |
Accessories (ordered separately) | VT112 / Rotatable mounting brackets |
Other | Chassis grounding (M4 thread), Restart button, Recovery switch |
